01
Hydraulic Brake
Hydraulic brakes deliver powerful stopping performance and precise control, ensuring safe riding across all conditions.
Control
Safety
Stopping Power
Price
- Regular price
- $199.00
- Sale price
- $199.00
- Regular price
-
Tax included.
Available
In Stock
Couldn't load pickup availability
Up to 5 Years Warranty
Wombat-1 Specs
Cargo Power. Long Range.

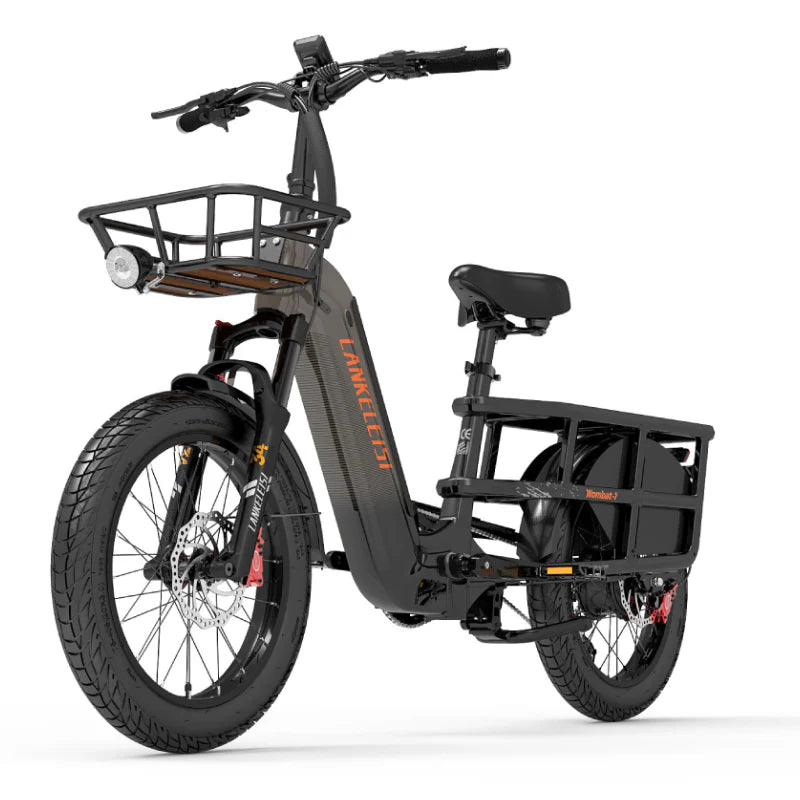

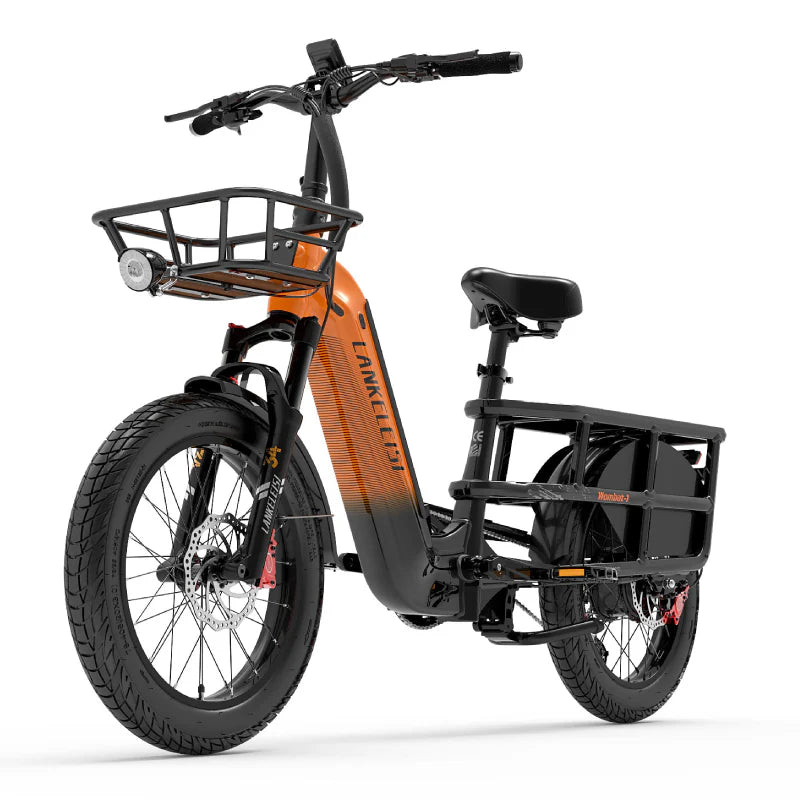

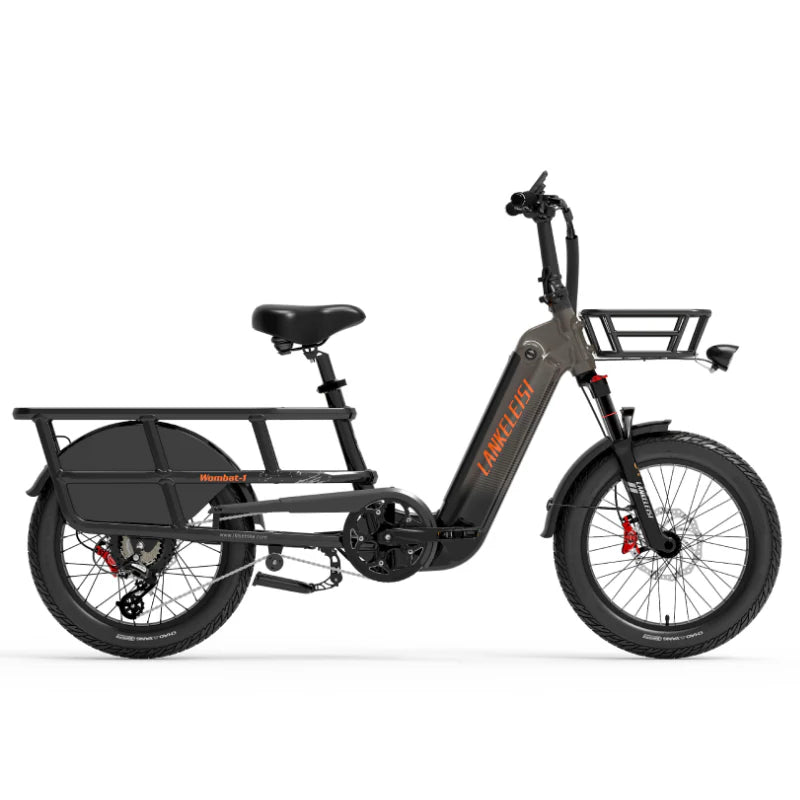

The VOLTROAM Wombat-1 is built for utility rides, daily commuting, cargo trips, and stable long-distance performance.
1000W
Motor
Strong Power
48V 20Ah
Battery
Daily Range
46KMH
Max Speed Tested
Fast Ride
60-150 KM
Per Charge
Long Range
200KG
Payload Capacity / 440LBS
Cargo Ready
160-190CM
Applicable Height
Rider Fit
Wombat-1 Features
Built For Cargo Rides.
Designed for power, storage, control and comfort, the VOLTROAM Wombat-1 gives you the utility of a cargo e-bike with the stability of fat tires.
02
20×3.0 Fat Tires
Chaoyang 20×3.0 inch fat tires improve grip and traction on uneven surfaces for a smooth, secure ride in tough terrain and adverse weather.
Grip
Traction
Stable Ride
03
48V LED Headlight & Taillight
The 48V front light brightens the path in low-visibility conditions, while the rear light increases visibility to pedestrians and vehicles at night.
Night Ride
Visibility
Safety
04
Thumb Throttle
The thumb throttle allows for easy and precise speed control, offering smooth and responsive acceleration for your e-bike ride.
Speed Control
Smooth
Responsive
05
Front Storage Basket
The Wombat-1 includes a complimentary front storage basket, offering extra space for shopping bags, backpacks, drinks, documents and more. The basket can hold up to 20 kg.
20KG Basket
Storage
Daily Use
06
Shimano 7 Speed Gear Shift System
The SHIMANO 7-speed gear system provides smooth and accurate shifting, guaranteeing optimal performance and efficiency in every riding condition.
7-Speed
Smooth Shift
Efficiency
07

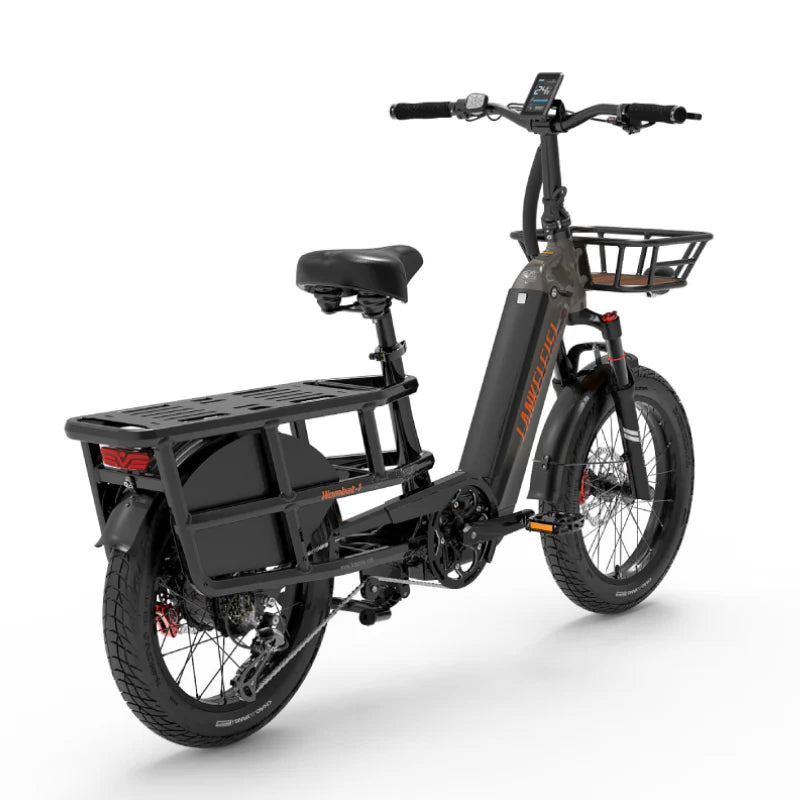

Rear Rack
The Wombat-1 rugged rear rack can support up to 90 kg, while the bike’s total maximum load reaches 200 kg. It can also fit an extra rear basket, rear frame armrests or pedals depending on your needs.
90KG Rack
Cargo Ready
200KG Load
Product Details
Wombat-1 Parameters
Full technical specifications and frequently asked questions for the VOLTROAM Wombat-1 cargo fat tire e-bike.
Specifications
Click each section to view the full product details.
FRAMESET Frame, fork, tires and braking setup +
Frame
6061 aluminum alloy frame
Fork

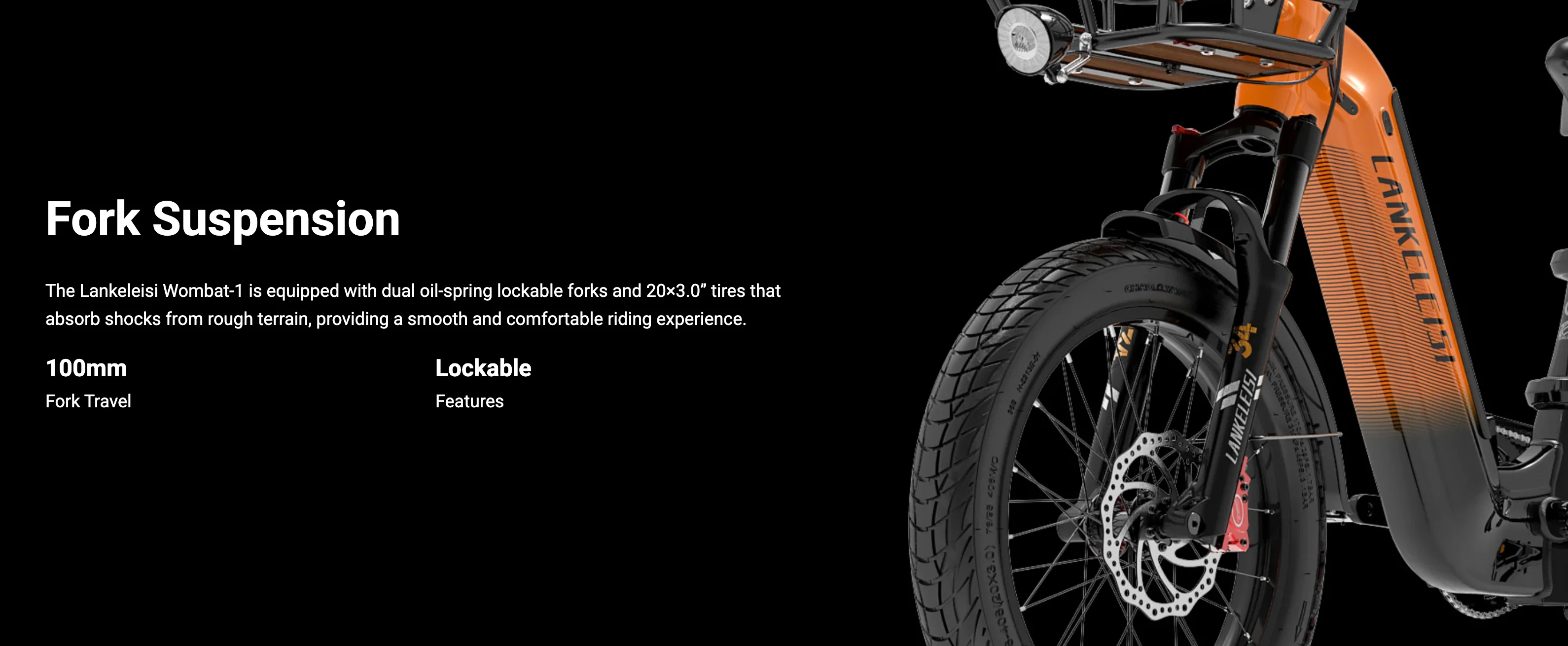

Lockable aluminum shoulder oil spring suspension forks, travel 100 mm
Handlebar Sets
31.8 aluminum alloy forged handlebar
Cranksets
Aluminum alloy crank square hole 52T
Rim
Aluminum alloy wheels
Brake
180MM DYISLAND De-energized Hydraulic Disc Brakes
Tire
20×3.0 Fat tire
ELECTRONICS Motor, battery, lights and controls +

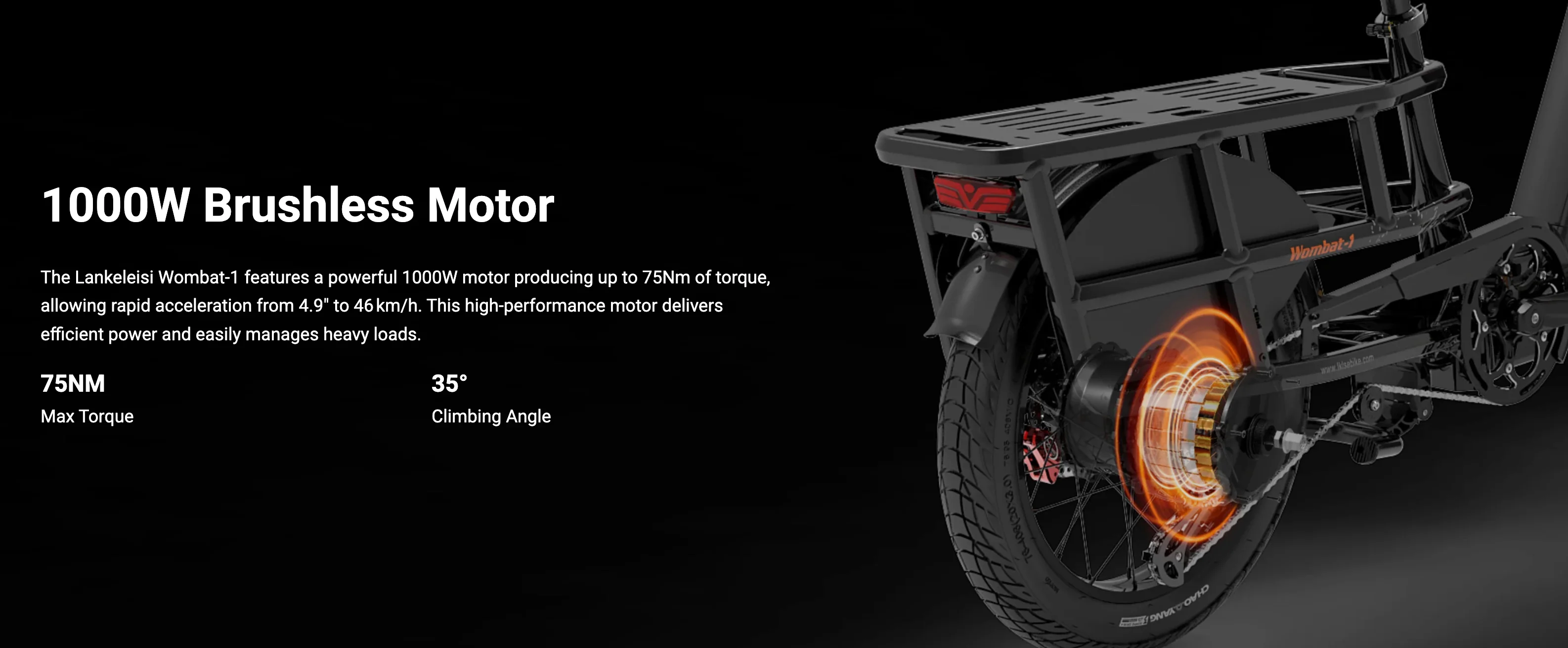

Motor
48V 1000W brushless motor, max torque 75Nm

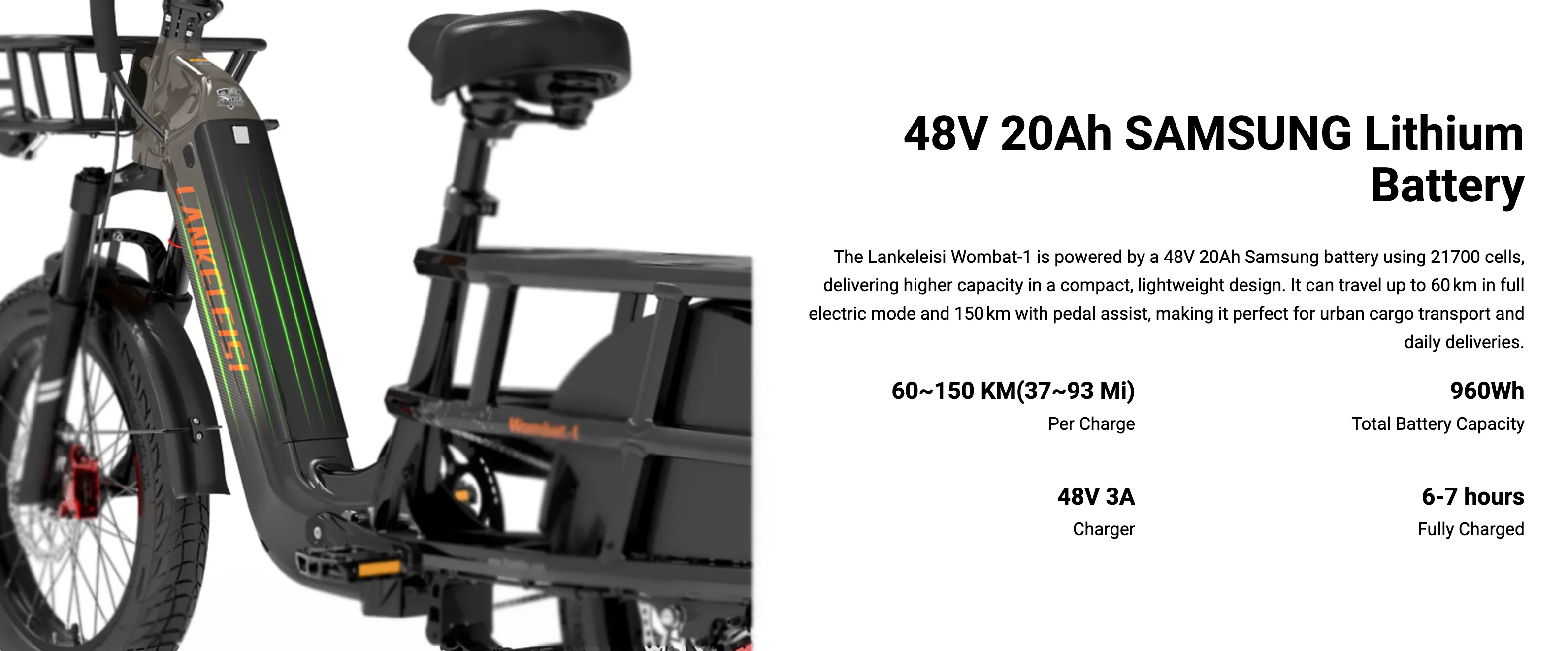

Battery
48V 20AH Samsung Lithium Battery, 21700 cells
Controller
48V20A vector controller

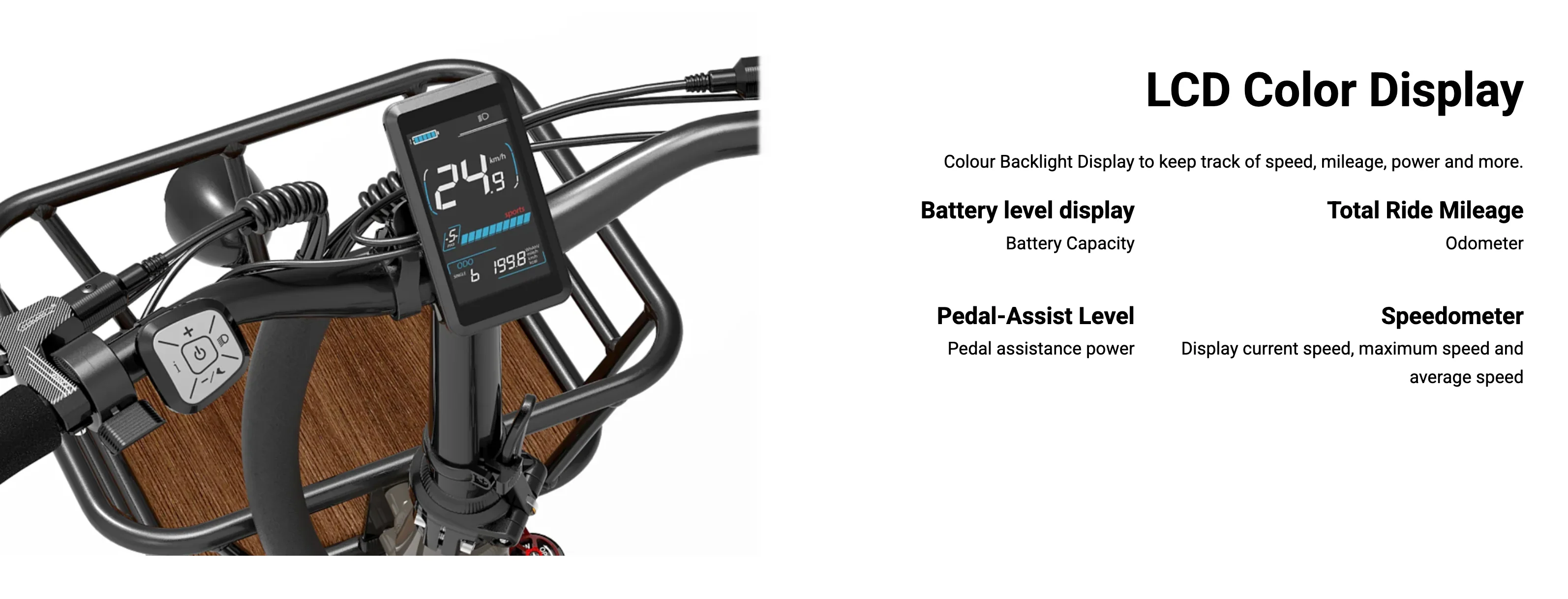

LCD Display
Color LCD with speed, trip, battery, assist level and more
Front light
48V LED high brightness headlights
Charger
48V 3A charger
Throttle
Thumb throttle
Power assist Sensor
Torque sensor
Waterproof Grade
IP54 waterproof for daily use, suitable for use in rain
SPEED & RANGE Tested riding conditions and range +
Riding conditions tested: after being fully charged, the load is 60kg, the temperature is 25°C, and the test is conducted at 20km/h. The actual measurement is the average speed on a flat road surface.
Pure electric mode
60-70 km
Pedal Assist Mode
120-150KM
GEAR SYSTEMS Transmission and shifting +
Variable speed
Shimano 7 speed
Shifting Lever
Shimano M315-7
Rear Derailleur
Shimano M310
Chain
KMC 7s
WEIGHT & LOAD Bike weight and cargo capacity +
Bike Weight
37KG (81.57lbs)
Max Bike Load
200KG (440lbs)
Max Rear Rack Load
90KG (190lbs)
FAQ
Click each question to reveal the answer.
How long will it take to receive my ebike purchase? Delivery time +
If it is in stock, our team will arrange delivery for you as soon as possible. It is expected to arrive at the warehouse in 5-7 business days.
What is the appropriate height for the Wombat-1? Rider fit +
The Wombat-1 is suitable for riders in the 160cm-190cm height range.
Who can I contact for other queries? Support contact +
You can contact our team by email: Contact@Voltroam.shop
Owner Manual
Wombat-1 Manual
View or download the Wombat-1 English manual to check setup instructions, safety information, riding guidance, parts details, and product operation notes.
Wombat-1 Ride Detail
Cargo Utility. Everyday Power.
The Wombat-1 is designed for practical daily rides, combining cargo-ready storage, fat tire stability, and strong electric performance for city streets and outdoor routes.
